CRB7 Universal Edging & Dowel Trim Kit MK3
Flush Trim With The New Waffle Design
In Stock
£29.95 £24.96 EX-VAT

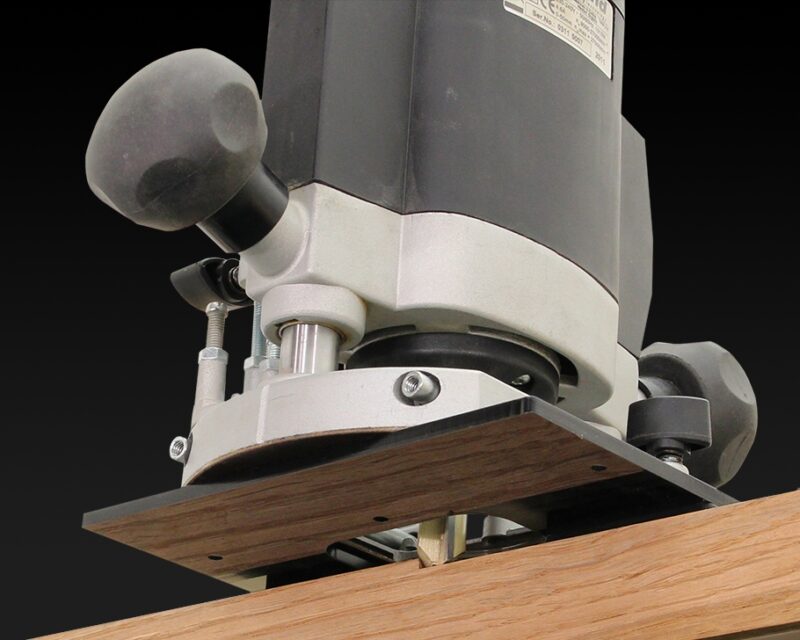

The CRB7 Universal Edging and Dowel Trim Kit is designed for flush trimming hardwood lipping and dowels in one routing pass.
The problems of flush trimming hardwood, Iron-on lipping’s and dowel heads are well documented. Many techniques have been developed and even specialized tools manufactured to try to make this tricky task easier. The CRB7 Edge Trim Kit might just be the simplest and quickest solution to achieving a beautiful fault free finish. Fitted in seconds and simple to set up. Flat-panel flushing tasks can be performed with accurate consistency when making a one-off piece of furniture to batch production manufacture.
1. Creating a stable router platform.
The obvious issue to trimming the protruding head of a dowel or lipping. Is that the base of the router hits the dowel even before the router cutter gets to it. The Edge Trim Kit Riser clips onto the underside of the CRB7 and acts as a 7mm (1/4″) platform. The platform has greater router to work surface contact area much more than the base of a regular router which ensures stability throughout the routing pass.
2. Maintaining a consistent cutter height.
Critically The CRB7 Trim Kit Riser maintains a consistent distance between the bottom of the cutter and the work surface. The requirement of the woodworker is to do as little work to completely flush the dowel head as possible; So the router cutter needs to be all but touching the surrounding work surface. At such close proximity even a small variation in cutter height could see the work surface inadvertently routed and as dowels are fitted after the wood is machined. Damage as this point could be almost impossible to rectify. The CRB7 Trim Kit allows a single routing pass to flush the dowel head or edge lipping requiring just light abrasive to finish.
3. Increasing the speed of the routing pass with the Tracer Racer.
The Edge Trim Kit includes a bearing race and mounting post. when fitted this removes the need for the woodworker to visually guide the router along the path of the lipping. The tracer bearing runs along the edge of the board keeping the cutter directly over the lipping ensuring the routing pass flushes the lipping in one go.
Tracer Racer
It’s especially useful in a batch production situation, where a series of boards are being lipped all at once. It’ll guide the cutter along the lipping ensuring only one pass will be needed.
It’s quick fit
The Edge Trim Kit Riser fits to the underside of the CRB7 in seconds. Requiring no additional screws to complete the task. The Tracer bearing post only has a single mounting screw and needs no tools to fit it either.
It’s well built
The Riser is machined in solid 7mm Acrylic sheet with steel passivate locating dowels and is manufactured in the UK.
Flushing dowel heads and real wood plugs.
Dowels are an especially decorative way to joint panels, usually the woodworker chooses a different wood type for the dowel to provide a contrast between panel and dowel head. Alternatively straight grain and end grain wood plugs are used to the same end but to hide screws which are performing the same task as the dowels. Both Dowels and Plugs are left proud of the work surface after fitting. Both need to be flushed to the board surface before finishing the piece. There are flexible dowel trimming saws available; However for the less experienced craftsman it’s easy to damage the work surface with the saw blade if the dowel head is trimmed too close to the surface. After trim sawing then paring with a sharp chisel to remove the remaining dowel waste is another opportunity for mistakes to occur. Alternatively Flush trimming dowel heads with a router and CRB7 Trim kit is very quick and consistent. The router is ideal for this as it’s very high cutter speed combined with a sharp TCT (Tungsten Carbide Tipped) cutter ensures that a flushing pass trims the remains of a dowel head without the risk of break out or damaging the work surface itself.
Flushing hardwood lipping.
Either copying an existing architectural molding on a kick board/skirting board or putting the finishing touches to a piece of furniture. Edge molding is an essential task in most woodworking projects in everything but rough stud work, framing and perhaps woodturning.
The CRB7 fitted with an Edge guide is one of the simplest set ups with which to perform a quick and easily repeatable edge mold. The CRB’s Micro Adjuster precisely controls how much of the cutter is presented to the board edge to be molded and with the false facepieces fitted the cutter is couched into the edge guide to create a seamless support either side of the cutter. Keeping the routing pass smooth and reducing the chance of burn marks and deviations in the molding.
Trimming Iron on edging.
Iron on edging is an easier alternative to hardwood lipping. A slightly oversized pre-glued backed roll of veneer or melamine edging is applied using a domestic iron. It’s much quicker but less durable than a solid glued edge. However the same issues remain with how to remove the excess edging so it lies flat with the core sheeting. The edging trim kit fits quickly onto the CRB Setup is as easy ensuring that the cutter removes just the waste edging. Leaving a tiny lip to be flushed by a light sanding.
The Edging Trim Kit is compatible with all versions of the CRB7 Combination Router Base (mk1, mk2 & mk3)
MPOWER | yes |
Essential cutter height test
It’s very important to set up and test the cutter height prior to a trimming session. Before setting the cutter height; ensure that the test area is clear and flat. An initial cutter height can be set by sliding a piece of thick paper between the bottom of the cutter and the test workpiece. Then after the cutter height is locked in. Lift the router and CRB away from the surface before turning it on. Do not rely on releasing the plunge mechanism – turning it on – and replunging. As there is sufficent play within the plunge mechanism of the router to return the cutter to a slightly different height and introducing the chance of damaging the workpiece. Even between trimming sessions – Always test the cutter height on a test piece to avoid costly damage.
Trimming hardwood lipping on all 4 sides
Should the hardwood lipping be glued to all 4 sides of a workpiece i.e a table top. Remove the Tracer racer and work in from both of the flat sides either side of the workpiece into the corner. That way the riser pad is given sufficient clearance to flush the corners too.
SPARE PARTS REQUEST
Main Unit
1 x Edging Trim Kit Riser Pad Assembly (40043)
1 x Riser Pad v3 (50302)
1 x Riser Pad Dowel (50275)
Accessory Internal Pack
1 x Bearing Tracer Assembly (40044)
1 x Bearing (50070)
1 x Bearing Tracer Post (50071)
1 x Bearing G Washer (50074)
1 x M4 Fixing Screw (50027)
1 x M4 Pillar Fixing Screw (50028)
1 x Edging Trim Kit Instruction Manual v4 (50320)
Ranedog – Parts Express –
Must have accessory for CBR7 router jig – If you work with plywood and need to do edge banding to cover up the panel ends, the LIPTRI edging adapter kit is BY FAR the best flush trimming set up I have ever used (and there have been many- most frustrating due to small footprint of the router base and narrow edges of the workpiece).This tool eliminates gouging and proud spots caused by the router tilting as well as the burn streaks associated with guide bearings mounted on the router bit.
Dutch – via Rockler –
CRB7 must have add on with the base unit this brings finish work into the “no sweat” category. this is a very useful addition.
Scott2634 –
Great product – Works as good or better than advertised
vanmoll –
Good addition to base product – Used for rabbit edge on woodwork to allow for drywall miss match, worked great and made adjusting the width and depth very easy.
Frank R. –
Five Stars – Works well, Very pleased
Dennis O – Infinity Cutting Tools –
Completes the CRB7 – A must to complete the CRB7
